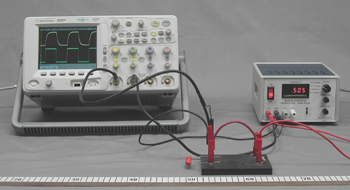

  • The square wave input to a RC circuit is compared to the voltage across the capacitor.
  • The oscilloscope display can be projected to the class using the VGA output.





        (use 1000 ohm resistor, 0.1 uf cap, 500 Hz square wave, low ohms output)
