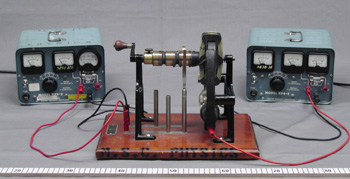

• Power supplies connected to the rotor and stator run a demonstration motor.
  • Motor may need help getting started.




        (use unregulated power supplies)
        (set current to 4 A on stator coil, 2 A on rotor coil)

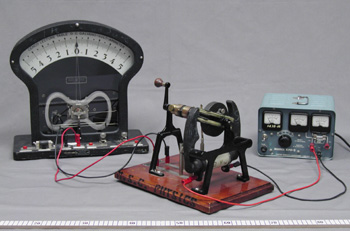

  • When the field coil is energized, turning the rotor will generate a current in the galvanometer.








        (set current to 1 A)
